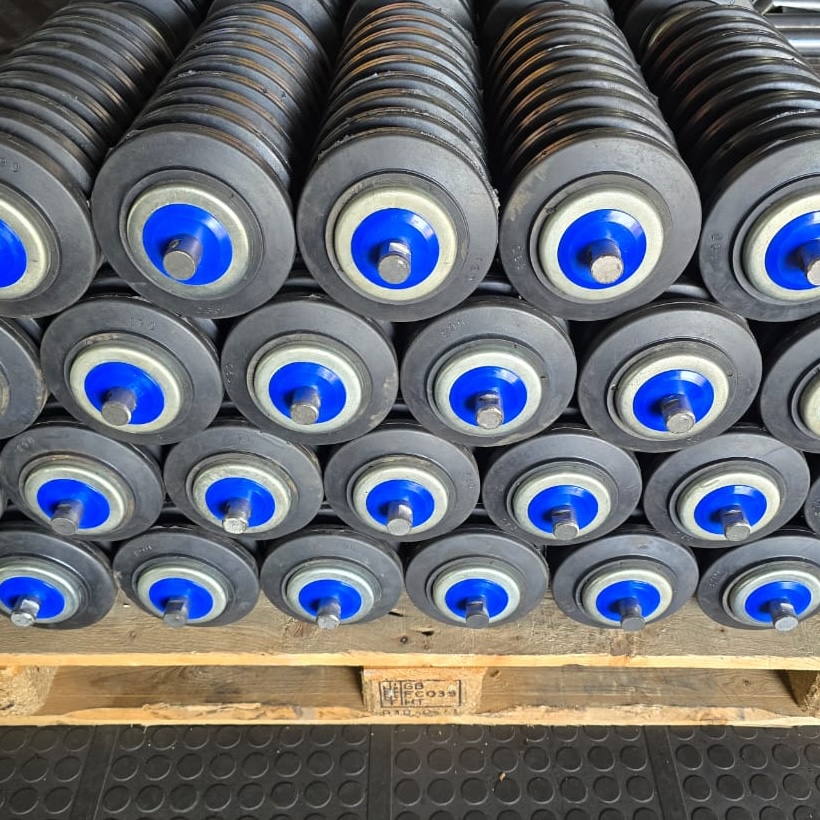

Impact idlers are specifically engineered to absorb shock and minimize damage at conveyor loading zones, where bulk material first makes contact with the belt. Their heavy‑duty rubber rings cushion the impact, reducing stress on both the belt and the supporting structure, ultimately extending equipment lifespan. By maintaining belt alignment and dissipating energy effectively, impact idlers improve overall system reliability and reduce maintenance downtime. They are an essential component in high‑impact areas across mining, aggregates, and material‑handling operations. Please note that the face length on impact rollers varies depending on the number of rubber discs. The gauge length remains in accordance with the SANS 1313 specification.

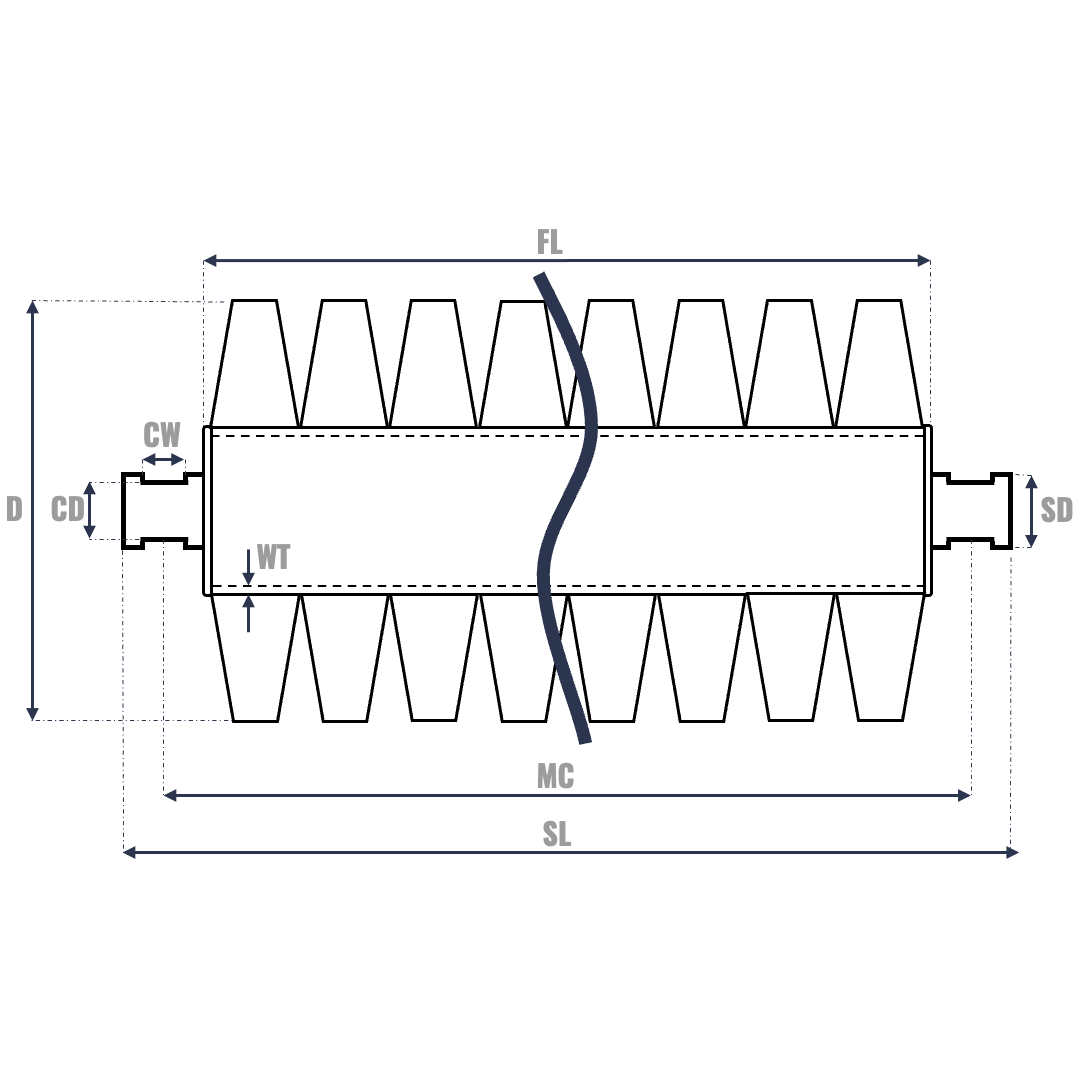

SPECIFICATIONS
IMPACT IDLER DIAMETER (D): 133
FACE LENGTH (FL): 240
SHELL WALL THICKNESS (WT): 4.5
SHAFT DIAMETER (SD): 25
SHAFT LENGTH (SL): 284
SHAFT SLOTTED WIDTH (CW): 12
SHAFT SLOT DIAMETER (CD): 18
PRODUCT TYPE: IMPACT IDLER
MATERIAL: Rubber SH60
BELT WIDTH (mm): 600
STANDARDS: SANS 1313-SERIES 25
SHAFT MOUNTING: CLOSED END-SLOTTED
SHAFT MOUNTING CENTRE (MC): 262
BEARING TYPE: 6205 2RS C3 BEARINGS
BEARING FIX: EXTERNAL CIRCLIP
SEALS: 5 PART LAB SEALS
CAPS: DUST COVER (FLINGERS)
All dimensions are in mm.
