IDLER-CONVEYOR IDLER-127/450/25 is engineered as a durable steel conveyor idler designed to ensure reliable material handling performance across mining, quarrying, and industrial applications. Its robust construction supports consistent belt tracking, reduced rolling resistance, and long operational life. The idler is manufactured to stringent quality standards, offering smooth rotation and improved load distribution. Each unit is designed to operate in harsh environments, resisting abrasion, dust ingress, and mechanical fatigue. This product provides dependable performance for both new installations and replacement applications, ensuring efficient and reliable conveyor operation.

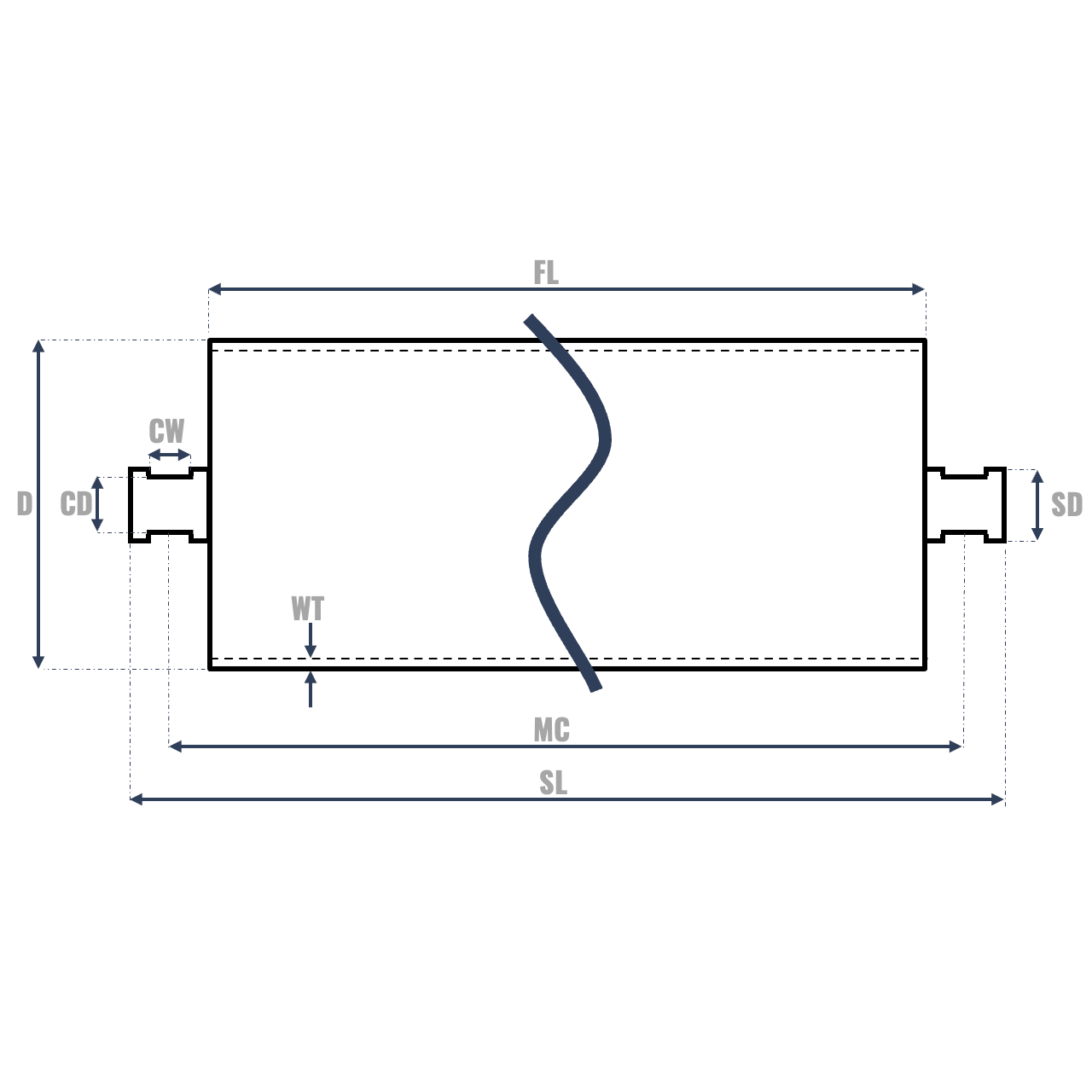

SPECIFICATIONS
Idler Diameter (D): 127
Face Length (FL): 450
Shell Wall Thickness (WT): 3.8
Shaft Diameter (SD): 25
Shaft Length (SL): 494
Mounting Centre (MC): 472
Shaft Slotted Width (CW): 12
Shaft Slot (CD): 18
Product Type: IDLER
Product Name: IDLER-CONVEYOR IDLER-127/450/25
Belt Width: 1200
Material: STEEL ROLLER
Coating: BLACK PAINTED
Standards: SANS 1313-SERIES 25
Shaft Mounting: CLOSED END-SLOTTED

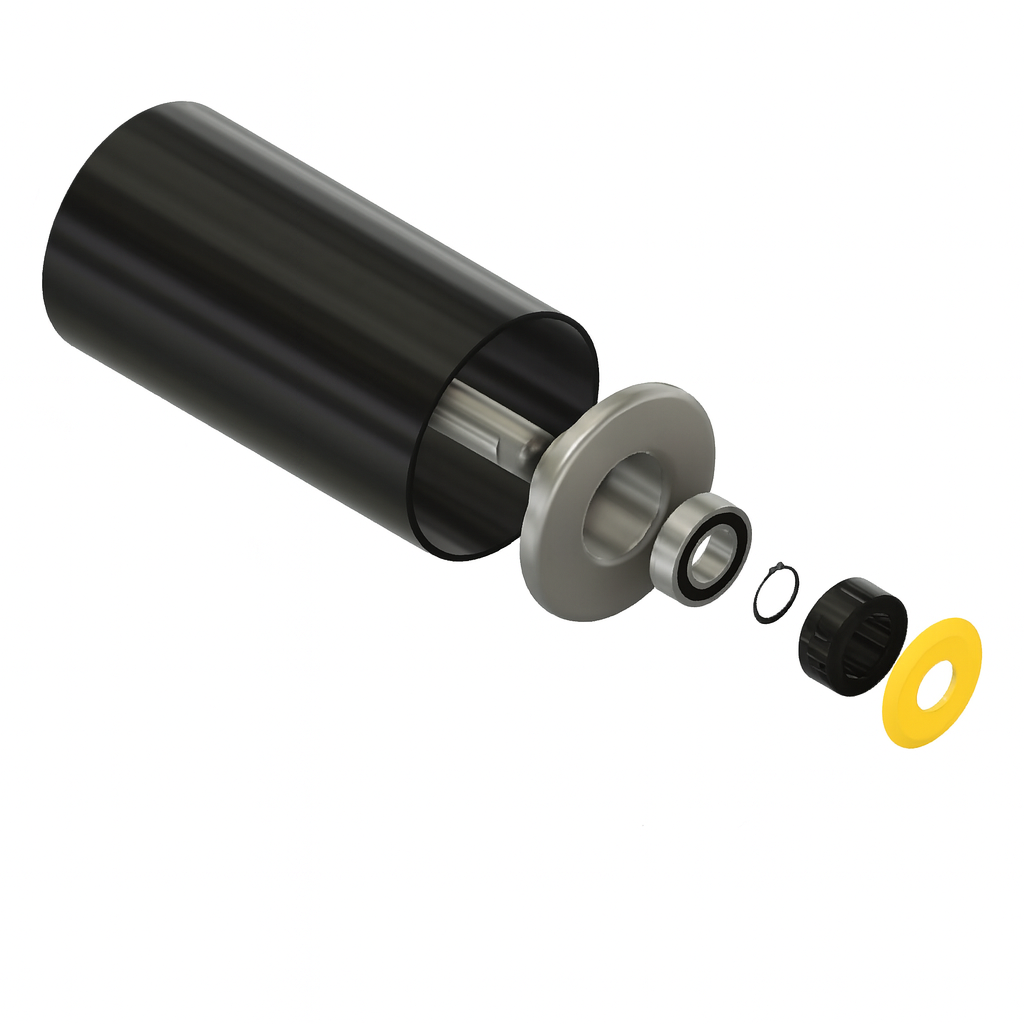

Bearing Type: 6205 2RS C3 BEARINGS
Bearing Fix: EXTERNAL CIRCLIP
Seals: 5 PART LAB SEALS
Caps: DUST COVER (FLINGERS)
All dimensions are in mm.
